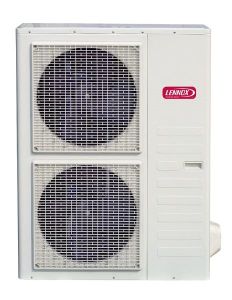

LCS series of add on cooling from Lennox

Key Features

  • Scroll Compressor for high efficiency and quiet operation
  • R-410A Refrigerant – Chlorine Free & Ozone Friendly
  • Condenser Fan to move large volumes of air evenly through the condenser
  • Power Options – Available in Single Phase or Three Phase

Lennox LCS Add On Cooling Range

Lennox LCS-17C-3X-2

Capacity
(kW)
Sensible
Cooling
Capacity
(kW)
Efficiency
Rating
AEER
(W/W)
Sound Pressure
(Outdoor
(dB(A) @ 1M)
Operating
Range
Outdoor (Co)
Volts/
Phase/
Hz
Rated Full Load Current
(A)
Unit Dimensions
H x W x D
(Outdoor – mm)
Weight
(Outdoor – kg)
Refrigerant
Type
(R410A(g))
Pre-Charged Length
(M)
Add Per Extra Meter
(g/M)
Pipe Sizes
mm (Inch)
 17.90  14.43  3.220  59  21 – 43  415/3/50  9.8 1245 x 900 x 330 108 3900 5 60  9.53 & 16.0 (3/8″ & 5/8″)

Lennox LCS-18C-1X-2

Capacity
(kW)
Sensible
Cooling
Capacity
(kW)
Efficiency
Rating
AEER
(W/W)
Sound Pressure
(Outdoor
(dB(A) @ 1M)
Operating
Range
Outdoor (Co)
Volts/
Phase/
Hz
Rated Full Load Current
(A)
Unit Dimensions
H x W x D
(Outdoor – mm)
Weight
(Outdoor – kg)
Refrigerant
Type
(R410A(g))
Pre-Charged Length
(M)
Add Per Extra Meter
(g/M)
Pipe Sizes
mm (Inch)
16.60 13.96 3.1658 65  21 – 43 240/1/50 27.7 1167 x  900 x 330 110 3000 5 60  9.53 & 16.0 (3/8″ & 5/8″)
