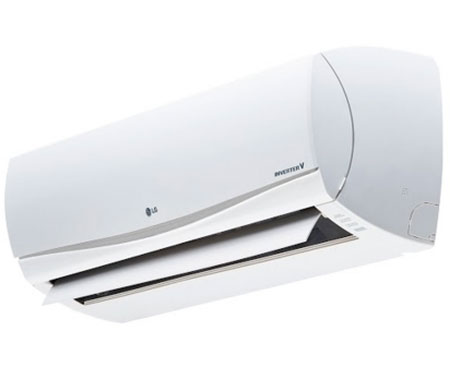

side view shot of Classic model wall split system from LG

LG Classic Wall Split Systems

System Model Number

LG S09AWN-14

Indoor Unit Specifications – Model Number S09AWN-NM14
Cooling Capacity
(Min/Rated/Max)
W
Heating Capacity
(Min/Rated/Max)
W
Power Input
(Cooling/Heating)
W
EER COP Star Rating – Cooling Star Rating – Heating Sound Pressure (Cooling)
Sleep/Low/Medium/High
(dBA)
Sound Pressure (Heating)
Low/Medium/High
(dBA)
890/2,500/3,700 890/3,200/5,000 518/653 4.83 4.90 5.0 5.0

19 / 23 / 33 / 38

 23 / 33 / 38
Sound Power (Cooling) High (dBA) Air Flow Rate (Cooling)
Sleep/Low/
Medium/High/
Max(power)
(m³/min)
Air Flow Rate (Heating)
Low/
Medium/High
(m³/min)
Dehumidification Rate (l/h) Running Current (Cooling)
Rated/Max (A)
Running Current (Heating)
Rated/Max (A)
Starting
Current (Cooling)
Rated/
(A)
Starting
Current (Heating)
Rated/
(A)
Dimensions
57

65 / 142 / 192 / 217 / 240

158 / 208 / 275

1.2 2.6/5.6 3.1/7.1 2.6 3.1

885 x 296 x 236

Net Weight
(kg)
11

Outdoor Unit Specifications – Model Number P09AWN-UM14

Operation Range (Cooling, Min – Max) / (Heating, Min – Max) Sound Pressure (Cooling/Heating) (High)
dBA
Sound Power
(Cooling)
(High)
dBA
Airflow Rate
(High)
L/S

Compressor Type

Net Weight

Dimension

Refrigerant Base Charge (R410A)

Pipe Sizing
(Gas/Liquid)
mm
Maximum
Circuit Breaker
(A)

-10~48/-15~24

45/45

65 550 Twin Rotary 36 770 x 545 x 288 1,150

9.52/6.35

15

LG S12AWN-14

Indoor Unit Specifications – Model Number S12AWN-NM14
Cooling Capacity
(Min/Rated/Max)
W
Heating Capacity
(Min/Rated/Max)
W
Power Input
(Cooling/Heating)
W
EER COP Star Rating – Cooling Star Rating – Heating Sound Pressure (Cooling)
Sleep/Low/Medium/High
(dBA)
Sound Pressure (Heating)
Low/Medium/High
(dBA)
890/3,500/4,040 890/4,000/6,000 862/872 4.06 4.59 3.5 4.5

19 / 23 / 33 / 39

 23 / 33 / 39
Sound Power (Cooling) High (dBA) Air Flow Rate (Cooling)
Sleep/Low/
Medium/High/
Max(power)
(m³/min)
Air Flow Rate (Heating)
Low/
Medium/High
(m³/min)
Dehumidification Rate (l/h) Running Current (Cooling)
Rated/Max (A)
Running Current (Heating)
Rated/Max (A)
Starting
Current (Cooling)
Rated/
(A)
Starting
Current (Heating)
Rated/
(A)
Dimensions
57

65 / 142 / 192 / 217 / 240

158 / 208 / 275

1.3 3.8/5.6 3.9/7.1 3.8 3.9

885 x 296 x 236

Net Weight
(kg)
11

Outdoor Unit Specifications – Model Number P12AWN-UM14

Operation Range (Cooling, Min – Max) / (Heating, Min – Max) Sound Pressure (Cooling/Heating) (High)
dBA
Sound Power
(Cooling)
(High)
dBA
Airflow Rate
(High)
L/S

Compressor Type

Net Weight

Dimension

Refrigerant Base Charge (R410A)

Pipe Sizing
(Gas/Liquid)
mm
Maximum
Circuit Breaker
(A)

-10~48/-15~24

45/45

65 550 Twin Rotary 36 770 x 545 x 288 1,150

9.52/6.35

15

LG S18AWN-14

Indoor Unit Specifications – Model Number S18AWN-N214
Cooling Capacity
(Min/Rated/Max)
W
Heating Capacity
(Min/Rated/Max)
W
Power Input
(Cooling/Heating)
W
EER COP Star Rating – Cooling Star Rating – Heating Sound Pressure (Cooling)
Sleep/Low/Medium/High
(dBA)
Sound Pressure (Heating)
Low/Medium/High
(dBA)
900/5,000/6,000 900/6,000/9,000 1,240/1,400 4.03 4.29 3.5 4.0

29 / 38 / 40 / 45

 35/40/42
Sound Power (Cooling) High (dBA) Air Flow Rate (Cooling)
Sleep/Low/
Medium/High/
Max(power)
(m³/min)
Air Flow Rate (Heating)
Low/
Medium/High
(m³/min)
Dehumidification Rate (l/h) Running Current (Cooling)
Rated/Max (A)
Running Current (Heating)
Rated/Max (A)
Starting
Current (Cooling)
Rated/
(A)
Starting
Current (Heating)
Rated/
(A)
Dimensions
60

125/183/225/267/365

192/233/275

2.0 6.6/10

7.3 / 10.7

6.6 7.3

1090 x 330 x 248

Net Weight
(kg)
14.5

Outdoor Unit Specifications – Model Number P18AWN-U214

Operation Range (Cooling, Min – Max) / (Heating, Min – Max) Sound Pressure (Cooling/Heating) (High)
dBA
Sound Power
(Cooling)
(High)
dBA
Airflow Rate
(High)
L/S

Compressor Type

Net Weight

Dimension

Refrigerant Base Charge (R410A)

Pipe Sizing
(Gas/Liquid)
mm
Maximum
Circuit Breaker
(A)

-10~48/-15~24

54/54

65 833 Twin Rotary 46

870 x 655 x 320

1,350

12.7/6.35

25

LG S24AWN-14

Indoor Unit Specifications – Model Number S24AWN-N214
Cooling Capacity
(Min/Rated/Max)
W
Heating Capacity
(Min/Rated/Max)
W
Power Input
(Cooling/Heating)
W
EER COP Star Rating – Cooling Star Rating – Heating Sound Pressure (Cooling)
Sleep/Low/Medium/High
(dBA)
Sound Pressure (Heating)
Low/Medium/High
(dBA)
900/7,000/8,650 900/8,000/11,400 1,950/2,060 3.59 3.88 2.5 3.0

29/38/42/47

 39/44/49
Sound Power (Cooling) High (dBA) Air Flow Rate (Cooling)
Sleep/Low/
Medium/High/
Max(power)
(m³/min)
Air Flow Rate (Heating)
Low/
Medium/High
(m³/min)
Dehumidification Rate (l/h) Running Current (Cooling)
Rated/Max (A)
Running Current (Heating)
Rated/Max (A)
Starting
Current (Cooling)
Rated/
(A)
Starting
Current (Heating)
Rated/
(A)
Dimensions
65

125/183/233/283/380

192/242/283

2.7

9.4/11.6

9.6 / 12.7

9.4 9.6

1090 x 330 x 248

Net Weight
(kg)
15

Outdoor Unit Specifications – Model Number P24AWN-U214

Operation Range (Cooling, Min – Max) / (Heating, Min – Max) Sound Pressure (Cooling/Heating) (High)
dBA
Sound Power
(Cooling)
(High)
dBA
Airflow Rate
(High)
L/S

Compressor Type

Net Weight

Dimension

Refrigerant Base Charge (R410A)

Pipe Sizing
(Gas/Liquid)
mm
Maximum
Circuit Breaker
(A)

-10~48/-15~24

55/55

66 1,000 Twin Rotary 55

870 x 800 x 320

1,900

15.88/9.52

25

LG S28AWN-14

Indoor Unit Specifications – Model Number S28AWN-N214
Cooling Capacity
(Min/Rated/Max)
W
Heating Capacity
(Min/Rated/Max)
W
Power Input
(Cooling/Heating)
W
EER COP Star Rating – Cooling Star Rating – Heating Sound Pressure (Cooling)
Sleep/Low/Medium/High
(dBA)
Sound Pressure (Heating)
Low/Medium/High
(dBA)
900/8,000/9,000 900/9,000/12,000 2,450/2,500 3.27 3.60 2.0 2.5

29/38/42/47

 39/44/49
Sound Power (Cooling) High (dBA) Air Flow Rate (Cooling)
Sleep/Low/
Medium/High/
Max(power)
(m³/min)
Air Flow Rate (Heating)
Low/
Medium/High
(m³/min)
Dehumidification Rate (l/h) Running Current (Cooling)
Rated/Max (A)
Running Current (Heating)
Rated/Max (A)
Starting
Current (Cooling)
Rated/
(A)
Starting
Current (Heating)
Rated/
(A)
Dimensions
65

125/183/233/283/385

192/242/283

2.8

10.9/11.6

11.1 / 12.7

10.9 11.1

1090 x 330 x 248

Net Weight
(kg)
15

Outdoor Unit Specifications – Model Number P28AWN-U214

Operation Range (Cooling, Min – Max) / (Heating, Min – Max) Sound Pressure (Cooling/Heating) (High)
dBA
Sound Power
(Cooling)
(High)
dBA
Airflow Rate
(High)
L/S

Compressor Type

Net Weight

Dimension

Refrigerant Base Charge (R410A)

Pipe Sizing
(Gas/Liquid)
mm
Maximum
Circuit Breaker
(A)

-10~48/-15~24

55/55

66 1,000 Twin Rotary 55

870 x 800 x 320

1,900

15.88/9.52

25

LG E32AWN-13

Indoor Unit Specifications – Model Number E32AWN-NV13
Cooling Capacity
(Min/Rated/Max)
W
Heating Capacity
(Min/Rated/Max)
W
Power Input
(Cooling/Heating)
W
EER (Part Load) COP Star Rating – Cooling Star Rating – Heating Sound Pressure (Cooling)
Sleep/Low/Medium/High
(dBA)
Sound Pressure (Heating)
Low/Medium/High
(dBA)
900/9,000/10,200 900/10,000/12,800 2,900/3,200 3.27 (3.92) 3.11 1.5 1.5

37/40/44/49

40/44/49

Sound Power (Cooling) High (dBA) Air Flow Rate (Cooling)
Sleep/Low/
Medium/High/
Max(power)
(m³/min)
Air Flow Rate (Heating)
Low/
Medium/High
(m³/min)
Dehumidification Rate (l/h) Running Current (Cooling)
Rated/Max (A)
Running Current (Heating)
Rated/Max (A)
Starting
Current (Cooling)
Rated/
(A)
Starting
Current (Heating)
Rated/
(A)
Dimensions
65

217/250/333/400/467

250/333/400

3.0

12.8/14.5

14.2/16

12.8 14.2

1190 x 346 x 265

Net Weight
(kg)
18.5

Outdoor Unit Specifications – Model Number E32AWN-UV13

Operation Range (Cooling, Min – Max) / (Heating, Min – Max) Sound Pressure (Cooling/Heating) (High)
dBA
Sound Power
(Cooling)
(High)
dBA
Airflow Rate
(High)
L/S

Compressor Type

Net Weight

Dimension

Refrigerant Base Charge (R410A)

Pipe Sizing
(Gas/Liquid)
mm
Maximum
Circuit Breaker
(A)

-10~48/-10~24

55/55

66 1,000 Twin Rotary 56

870 x 800 x 320

1,900

15.88/9.52

25
