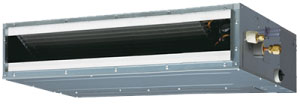

Bulkhead
Slim
Fujitsu Bulkhead/Slim Ducted Inverters
Indoor/Outdoor Model Number

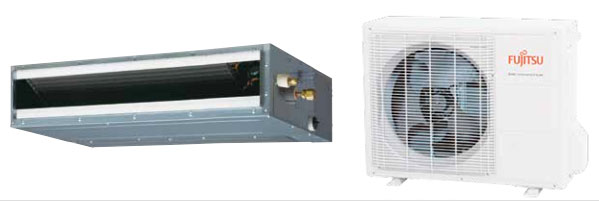

Fujitsu ARTG18LLTA/AOTG18LACC
Internal Unit
External Unit
| Reverse Cycle System |
Cooling Capacity (watts) |
Cooling Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Heating Capacity (watts) |
Heating Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Power Supply (Volts) |
Phase-Frequency (Ph-Hz) |
|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 5,200 | 17,700 | 900 – 5,900 | 31,00 – 21,100 | 6,000 | 20,500 | 900 – 7,500 | 3,100 – 25,600 | 240 | 1-50 |
| Power Supply Attachment |
Plug Size (amps) |
Running Current (Cooling) |
Running Current (Range) |
Running Current (Heating) |
Running Current (Range) |
Input (Cooling) |
Input (Range) |
Input (Heating) |
Input (Range) |
Moisture Removal (l/hr) |
| Outdoor | NA | 6.1 | Max 9.6 | 6.6 | Max 13.1 | 1,450 | Max 1,610 | 1,560 | Max 2,310 | 2 |
| E.E.R. (Cooling) |
C.O.P. (Heating) |
Fan Speeds (Stage) |
Air Circulation (High – l/s) |
Compressor Type | Dimensions Indoor Unit (H x W x D) |
Net Weight Indoor (kg) |
Dimensions Outdoor Unit (H x W x D) |
Net Weight Outdoor (kg) |
Indoor Unit Sound Pressure lvl (dBA@1metre) |
Outdoor Unit Sound Pressure lvl (dBA@1metre) |
| 3.59 | 3.85 | 4 | 261 | Twin Rotary | 198 x 900 x 620 | 23 | 620 x 790 x 290 | 41 | 32 | 55 |
| Outdoor Unit Sound Power lvl (dBA) |
Refrigerant | Connection Pipe Sizes (Gas – mm) |
Connection Pipe Sizes (Liquid – mm) |
Pre Charged Length (m) |
Minimum Pipe Length (m) |
Maximum Pipe Length (m) |
Maximum Pipe Height (m) |
Pipe Connection Methods | Outdoor Operating Temp (Cooling – Degrees C) |
Outdoor Operating Temp (Heating – Degrees C) |
| 71 | R410a | 12.7 | 6.35 | 15 | 3 | 30 | 20 | Flare | -10 to 46 | -15 to 24 |
Fujitsu ARTG24LMLC/AOTG24LATC
Internal Unit
External Unit
| Reverse Cycle System |
Cooling Capacity (watts) |
Cooling Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Heating Capacity (watts) |
Heating Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Power Supply (Volts) |
Phase-Frequency (Ph-Hz) |
|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 7,100 | 24,200 | 2,900-8,000 | 9,900-27,300 | 8,000 | 27,300 | 2,200-9,100 | 7,500-31,000 | 240 | 1-50 |
| Power Supply Attachment |
Plug Size (amps) |
Running Current (Cooling) |
Running Current (Range) |
Running Current (Heating) |
Running Current (Range) |
Input (Cooling) |
Input (Range) |
Input (Heating) |
Input (Range) |
Moisture Removal (l/hr) |
| Outdoor | NA | 8.8 | Max 15.7 | 9.2 | Max 15.7 | 2,090 | Max 2,400 | 2,190 | Max 2,750 | 2.5 |
| E.E.R. (Cooling) |
C.O.P. (Heating) |
Fan Speeds (Stage) |
Air Circulation (High – l/s) |
Compressor Type | Dimensions Indoor Unit (H x W x D) |
Net Weight Indoor (kg) |
Dimensions Outdoor Unit (H x W x D) |
Net Weight Outdoor (kg) |
Indoor Unit Sound Pressure lvl (dBA@1metre) |
Outdoor Unit Sound Pressure lvl (dBA@1metre) |
| 3.40 | 3.65 | 4 | 305 | Twin Rotary | 270 x 1,135 x 700 | 38 | 830 x 900 x 330 | 60 | 31 | 53 |
| Outdoor Unit Sound Power lvl (dBA) |
Refrigerant | Connection Pipe Sizes (Gas – mm) |
Connection Pipe Sizes (Liquid – mm) |
Pre Charged Length (m) |
Minimum Pipe Length (m) |
Maximum Pipe Length (m) |
Maximum Pipe Height (m) |
Pipe Connection Methods | Outdoor Operating Temp (Cooling – Degrees C) |
Outdoor Operating Temp (Heating – Degrees C) |
| 68 | R410A | 15.88 | 6.35 | 15 | 3 | 30 | 30 | Flare | -10 to 46 | -15 to 24 |

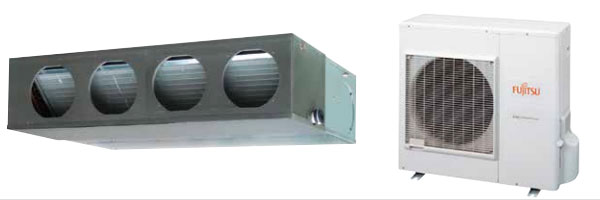

Fujitsu ARTA30LBTU/AOTA30LGTL
Internal Unit
External Unit
| Reverse Cycle System |
Cooling Capacity (watts) |
Cooling Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Heating Capacity (watts) |
Heating Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Power Supply (Volts) |
Phase-Frequency (Ph-Hz) |
|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 8,500 | 29,000 | 2,800-10,000 | 9,500-34,100 | 10,000 | 34,1000 | 2,700-11,200 | 9,200-38,200 | 240 | 1-50 |
| Power Supply Attachment |
Plug Size (amps) |
Running Current (Cooling) |
Running Current (Range) |
Running Current (Heating) |
Running Current (Range) |
Input (Cooling) |
Input (Range) |
Input (Heating) |
Input (Range) |
Moisture Removal (l/hr) |
| Outdoor | NA | 11.1 | Max 17 | 11.2 | Max 17 | 2,650 | Max 4,040 | 2,680 | Max 4,040 | 2.5 |
| E.E.R. (Cooling) |
C.O.P. (Heating) |
Fan Speeds (Stage) |
Air Circulation (High – l/s) |
Compressor Type | Dimensions Indoor Unit (H x W x D) |
Net Weight Indoor (kg) |
Dimensions Outdoor Unit (H x W x D) |
Net Weight Outdoor (kg) |
Indoor Unit Sound Pressure lvl (dBA@1metre) |
Outdoor Unit Sound Pressure lvl (dBA@1metre) |
| 3.21 | 3.73 | 4 | 542 | Twin Rotary | 270 x 1,135 x 700 | 40 | 830 x 900 x 330 | 61 | 42 | 53 |
| Outdoor Unit Sound Power lvl (dBA) |
Refrigerant | Connection Pipe Sizes (Gas – mm) |
Connection Pipe Sizes (Liquid – mm) |
Pre Charged Length (m) |
Minimum Pipe Length (m) |
Maximum Pipe Length (m) |
Maximum Pipe Height (m) |
Pipe Connection Methods | Outdoor Operating Temp (Cooling – Degrees C) |
Outdoor Operating Temp (Heating – Degrees C) |
| 69 | R410A | 15.88 | 9.52 | 20 | 5 | 50 | 30 | Flare | -15 to 46 | -15 to 24 |

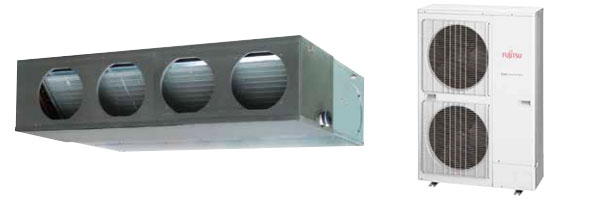

Fujitsu ARTA36LATU/AOTA36LBTL
Internal Unit
External Unit
| Reverse Cycle System |
Cooling Capacity (watts) |
Cooling Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Heating Capacity (watts) |
Heating Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Power Supply (Volts) |
Phase-Frequency (Ph-Hz) |
|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 10,000 | 34,100 | 3,800-11,200 | 13,000-38,200 | 11,200 | 38,200 | 4,000-14,000 | 13,700-47,800 | 240 | 1-50 |
| Power Supply Attachment |
Plug Size (amps) |
Running Current (Cooling) |
Running Current (Range) |
Running Current (Heating) |
Running Current (Range) |
Input (Cooling) |
Input (Range) |
Input (Heating) |
Input (Range) |
Moisture Removal (l/hr) |
| Outdoor | NA | 13 | Max 19 | 12.7 | Max 19 | 3,110 | Max 4,540 | 3,020 | Max 4,540 | 3 |
| E.E.R (Cooling) |
C.O.P. (Heating) |
Fan Speeds (Stage) |
Air Circulation (High – l/s) |
Compressor Type | Dimensions Indoor Unit (H x W x D) |
Net Weight Indoor (kg) |
Dimensions Outdoor Unit (H x W x D) |
Net Weight Outdoor (kg) |
Indoor Unit Sound Pressure lvl (dBA@1metre) |
Outdoor Unit Sound Pressure lvl (dBA@1metre) |
| 3.21 | 3.71 | 4 | 513 | Twin Rotary | 270 x 1,135 x 700 | 40 | 1290 x 900 x 330 | 98 | 40 | 54 |
| Outdoor Unit Sound Power lvl (dBA) |
Refrigerant | Connection Pipe Sizes (Gas – mm) |
Connection Pipe Sizes (Liquid – mm) |
Pre Charged Length (m) |
Minimum Pipe Length (m) |
Maximum Pipe Length (m) |
Maximum Pipe Height (m) |
Pipe Connection Methods | Outdoor Operating Temp (Cooling – Degrees C) |
Outdoor Operating Temp (Heating – Degrees C) |
| 69 | R410A | 15.88 | 9.52 | 20 | 5 | 50 | 30 | Flare | -15 to 46 | -15 to 24 |
Fujitsu ARTA45LATU/AOTA45LBTL
Internal Unit
External Unit
| Reverse Cycle System |
Cooling Capacity (watts) |
Cooling Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Heating Capacity (watts) |
Heating Capacity (BTU/h) |
Range (watts) |
Range (BTU/h) |
Power Supply (Volts) |
Phase-Frequency (Ph-Hz) |
|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 12,500 | 42,700 | 4,000-14,000 | 13,700-47,800 | 14,000 | 47,800 | 4,200-16,200 | 14,300-55,300 | 240 | 1-50 |
| Power Supply Attachment |
Plug Size (amps) |
Running Current (Cooling) |
Running Current (Range) |
Running Current (Heating) |
Running Current (Range) |
Input (Cooling) |
Input (Range) |
Input (Heating) |
Input (Range) |
Moisture Removal (l/hr) |
| Outdoor | NA | 16.3 | Max 20 | 16.1 | Max 20 | 3,890 | Max 4,780 | 3,830 | Max 4,780 | 3.5 |
| E.E.R (Cooling) |
C.O.P. (Heating) |
Fan Speeds (Stage) |
Air Circulation (High – l/s) |
Compressor Type | Dimensions Indoor Unit (H x W x D) |
Net Weight Indoor (kg) |
Dimensions Outdoor Unit (H x W x D) |
Net Weight Outdoor (kg) |
Indoor Unit Sound Pressure lvl (dBA@1metre) |
Outdoor Unit Sound Pressure lvl (dBA@1metre) |
| 3.21 | 3.66 | 4 | 583 | Twin Rotary | 270 x 1,135 x 700 | 40 | 1290 x 900 x 330 | 98 | 42 | 55 |
| Outdoor Unit Sound Power lvl (dBA) |
Refrigerant | Connection Pipe Sizes (Gas – mm) |
Connection Pipe Sizes (Liquid – mm) |
Pre Charged Length (m) |
Minimum Pipe Length (m) |
Maximum Pipe Length (m) |
Maximum Pipe Height (m) |
Pipe Connection Methods | Outdoor Operating Temp (Cooling – Degrees C) |
Outdoor Operating Temp (Heating – Degrees C) |
| 70 | R410A | 15.88 | 9.52 | 20 | 5 | 50 | 30 | Flare | -15 to 46 | -15 to 24 |
