Escea E Series

Escea EF5000_Gas Outdoor Fireplace

dimensions for EF5000_gas and E5000_wood outdoor fireplaces from ESCEA

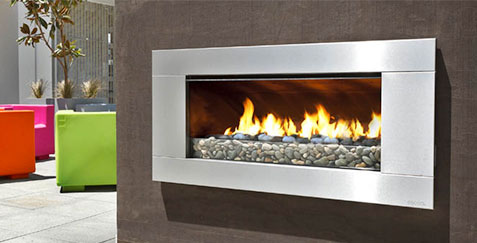

ESCEA EF5000_gas putdoor fireplace built into brown stone wall with silver border and a green, pink and orange chair in the background

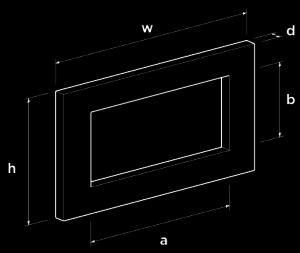

DIMENSIONS KEY

Dimensions key to help users understand the dimensions of their ESCEA fireplace
Slab Fascia Viewable Glass/
Flame Area (mm)		 Fuel Beds Gas Type Heat Output Energy Input

Stainless Steel/
Satin Black
1290w x 645h x 60d

900a x 400b

Rocks & Coals

 Natural Gas,
Propane

16.5kW

25 – 60 MJ/hr
Star rating Flue Approximate
Appliance Size		 Zero Clearance Kitset Enclosure

Not rated

Vent Free

1000w x 580h x 320d

 YES

1800w x 1200h x 600d

Escea EW5000_WOOD Outdoor Fireplace

dimensions for EF5000_gas and E5000_wood outdoor fireplaces from ESCEA
ESCEA E5000_wood outdoor fireplace built into a brown brick wall that is open to expose flames

DIMENSIONS KEY

Dimensions key to help users understand the dimensions of their ESCEA fireplace
Slab Fascia Frameless
Dimensions
(mm)		 Viewable Glass/
Flame Area (mm)		 Fuel Beds Gas Type Heat Output

Stainless Steel/
Satin Black
1290w x 645h x 60d

996w x 564h

900a x 400b

 User Provided
Wood or Charcole

N/A

 Fuel Dependent
Energy Input Star rating Flue Approximate
Appliance Size		 Zero Clearance  Kitset Enclosure
N/A

Not rated

Natural Draft

 900w x 760h x 490d YES

 1800w x 1200h x 600d
