BRAEMAR 5 STAR GAS DUCTED HEATING RANGES

Braemar THMD 5 star range

THMD 5 star ducted gas heating product from Braemar
  • Replacement for other older heater products
  • Outstanding efficiency
  • Very economical to run
  • Corrosion resistant heat exchanger
  • Easy to operate
  • Proven to be reliable
  • Softairâ„¢ for greater comfort

Specifications

Model Length (mm) Width (mm) Height (mm) Weight (kg) Rating Capacity
(MJ/hr rating)
Airflow
Standard
ltr/sec
Airflow
Extra Air @100pa
Supply &
Return Duct
Diameter (mm)
Output (kw) Manual
Digital Controller
Spectrolink Controller Gas Type Controller
THMD516 770 385 635 47 5.2 70 440 N/A 15.9 Standard NG
THMD520 770 385 635 50 5.2 88 490 N/A 20.0 Standard NG
THMD530 880 510 650 70 5.2 122 880 N/A 27.8 Standard NG

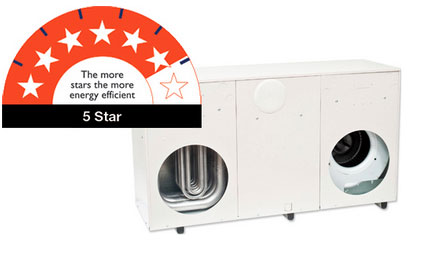

Braemar TH 5 star range

TH 5 star ducted gas heating product from Braemar
  • Outstanding efficiency
  • Highly economical to run
  • Capable of zoned-heating
  • Softairâ„¢ for greater comfort
  • Corrosion-resistant heat exchanger

Specifications

Model Length (mm) Width (mm) Height (mm) Weight (kg) Rating Capacity
(MJ/hr rating)
Airflow
Standard
ltr/sec
Airflow
Extra Air @100pa
Supply &
Return Duct
Diameter (mm)
Output (kw) Manual
Digital Controller
Spectrolink Controller Gas Type Controller
TSS523 1150 385 660 61 5.9 88 640 755 300 (350 XA) 22.5 Standard NG/Propane
TH516 1150 385 660 58 5.6 60 500 300 16 Standard NG
TH523 1150 385 660 61 5.6 88 640 300 23 Standard NG
TH5X23 1150 385 660 61 5.6 88 755 350 23 Standard NG/Propane
TH532 1165 510 660 72 5.6 122 935 350 32 Standard NG
TH5X32 1165 510 660 72 5.6 122 1070 400 32 Standard NG/Propane

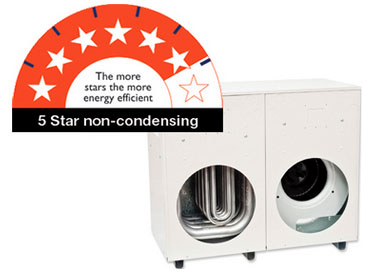

Braemar THM 5 star range

THM 5 star ducted gas heating product from Braemar
  • Outstanding efficiency
  • Very economical to run
  • Capable of zoned-heating
  • Softairâ„¢ for greater comfort
  • Corrosion-resistant heat exchanger

Specifications

Model Length (mm) Width (mm) Height (mm) Weight (kg) Rating Capacity
(MJ/hr rating)
Airflow
Standard
ltr/sec
Airflow
Extra Air @100pa
Supply &
Return Duct
Diameter (mm)
Output (kw) Manual
Digital Controller
Spectrolink Controller Gas Type Controller
THM516 770 385 660 47 5.2 70 475 300 15.9 Standard NG
THM520 770 385 660 50 5.2 88 630 300 20.0 Standard NG
THM5X20 770 385 660 51 5.2 88 695 350 20.0 Standard NG
THM530 880 510 660 70 5.2 122 960 350 27.8 Standard NG
THM5X30 880 510 660 70 5.2 122 1050 400 27.8 Standard NG
