Escea DX Series

Escea DX Series Heat Ducting Technology

How Does ESCEA’s Heat Ducting Technology Work?

Many individuals love the look and design of a gas log fireplace in their home, but can’t justify getting one when they only heat a small portion of the home. With ESCEA’s innovative Heat Ducting Technology this is a concern of the past. You can now have the class of a Gas Log Fireplace, with the convenience and efficiency of ducted heating systems.

Escea DX1000 Indoor Fireplace (Gas)

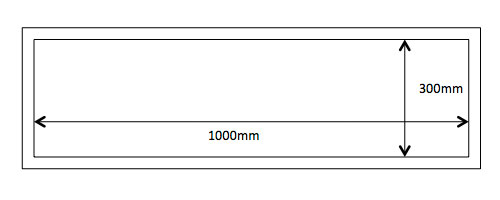

Dimensions for Escea DX1000 Indoor Fireplace that uses Gas

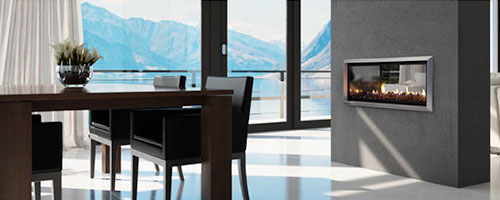

Escea DX1000 Indoor fireplace (gas) built into a coal coloured wall warming up a room with a scenic view of mountains outside

DIMENSIONS KEY

Dimensions key to help users understand the dimensions of their ESCEA fireplace
Bevelled
Lite
Fascia
Dimensions
(mm)
Frameless
Dimensions
(mm)
Viewable Glass/
Frame Area
Dimensions
(mm)
Fuel Beds Gas Type Heat
Output
Energy Input Star rating
Titanium Silver/
Volcanic Black
1130w x 430h x 40d
1060w x 360h 1000a x 300b Crystalight,
Rocks & Coal,
Woodland
Natural Gas,
Propane
8.4kW 18.5 – 34 MJ/hr 4.8
Heating
Ducted
Technology
Wireless Remote
& Thermostat
Timer Smart Heat Reflective
Panel
Flue Approximate
Appliance Size
Zero Clearance
YES YES YES YES Included Powered
Direct Vent
1330w x 750h x 380d YES

Escea DX1500 Indoor Fireplace (Gas)

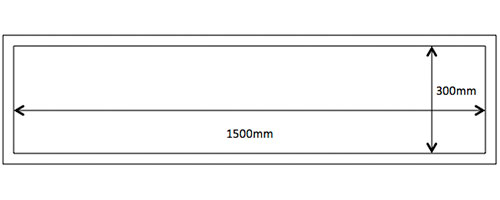

dimensions for Escea DX1500 Indoor Fireplace (gas)

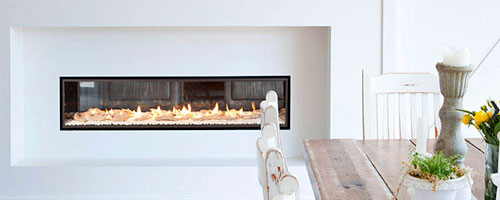

Escea DX1500 Indoor fireplace (Gas) with stones built into a white wall next to a wooden kitchen table

DIMENSIONS KEY

Dimensions key to help users understand the dimensions of their ESCEA fireplace
Bevelled
Lite
Fascia
Dimensions
(mm)
Frameless
Dimensions
(mm)
Viewable Glass/
Frame Area
Dimensions
(mm)
Fuel Beds Gas Type Heat
Output
Energy Input Star rating
Titanium Silver/
Volcanic Black
1630w x 430h x 40d
1560w x 360h 1500a x 300b Crystalight,
Rocks & Coal,
Woodland
Natural Gas,
Propane
10.4kW 25 – 42 MJ/hr 4.3
Heating
Ducted
Technology
Wireless Remote
& Thermostat
Timer Smart Heat Reflective
Panel
Flue Approximate
Appliance Size
Zero Clearance
YES YES YES YES Included Powered
Direct Vent
1830w x 750h x 380d YES
